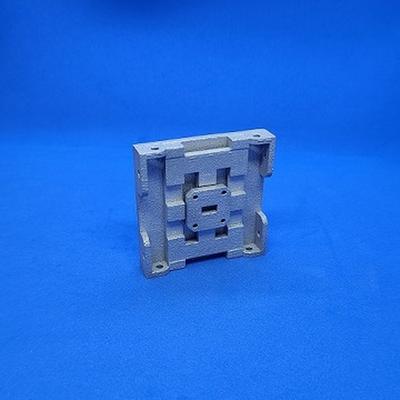

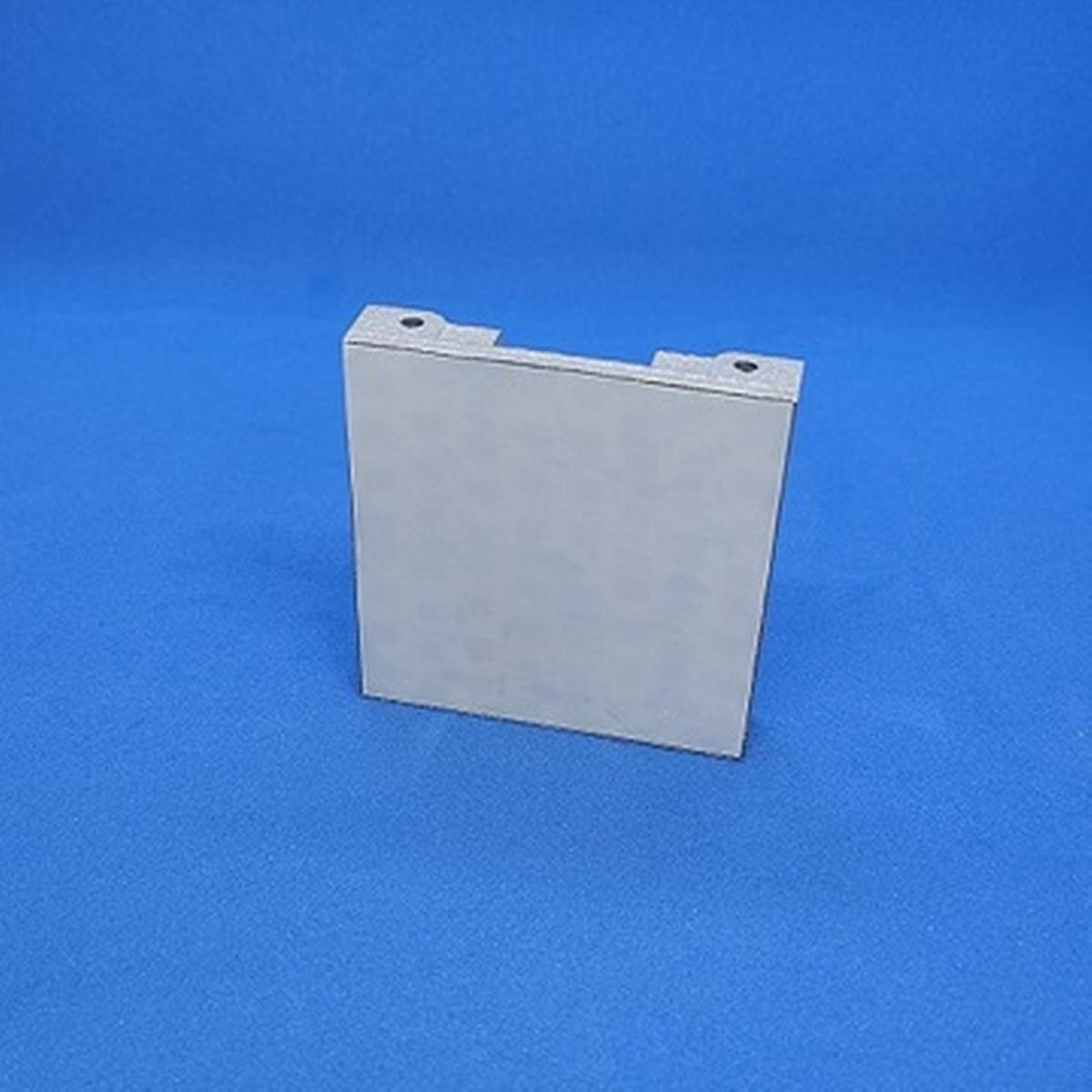

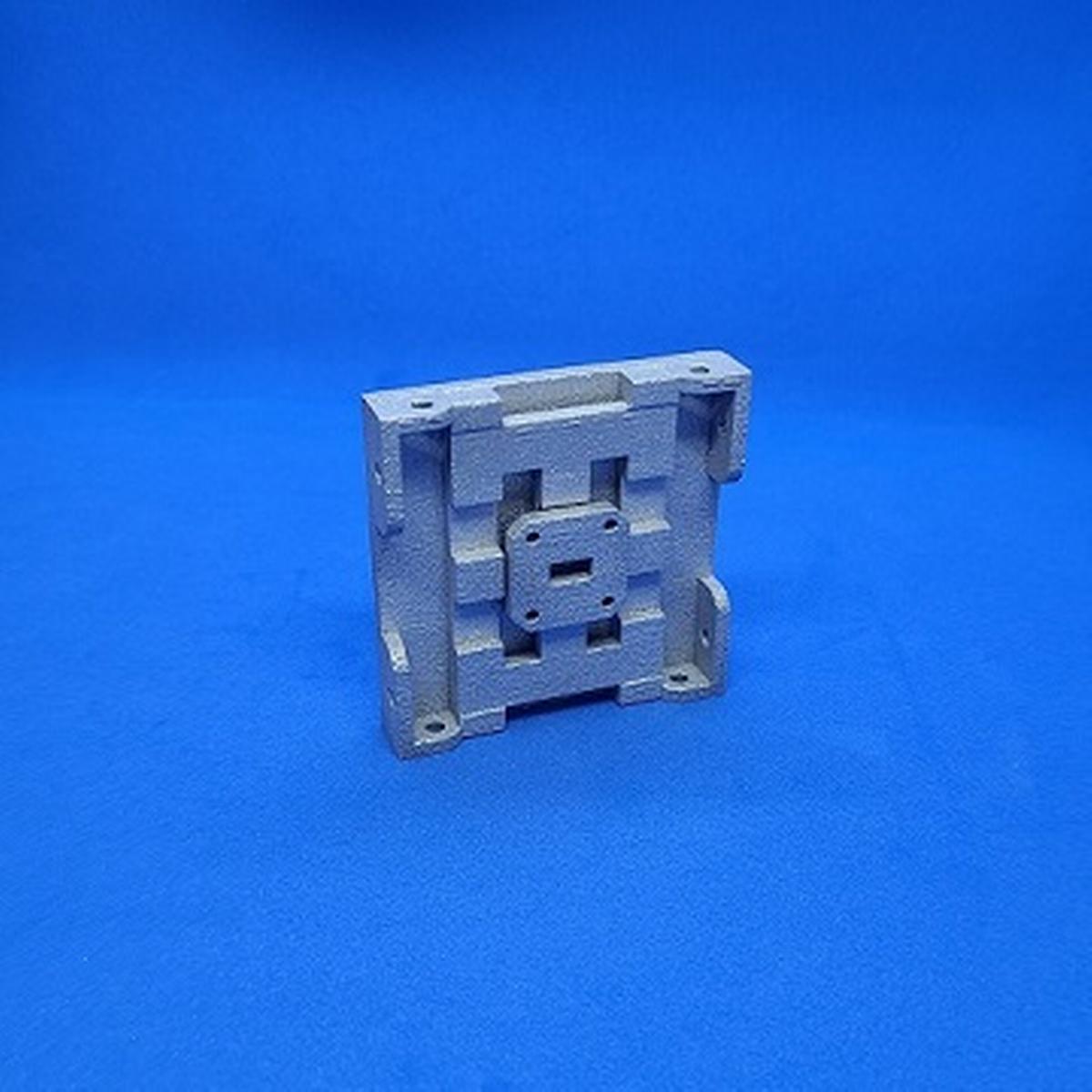

KAFP-30.60.25-LP-1000: High Efficiency, Ka-Band Antenna with 25 dBi of gain over 27.0 - 33.0 GHz frequency range. Typical applications include Radar, Datalinks, Test, and EW source antennas.
| Model | Connector | Frequency | Gain | Size | VSWR | Polarization |
|---|---|---|---|---|---|---|
| KAFP-30.60.25-LP | WR-28 | 27.0 - 33.0 GHz | 25.0 dBi | 2.46"x2.46"x0.43" | 1.5:1 | Linear (V or H) |
Price: Call for pricing
